The Pantera range of products for data acquisition.

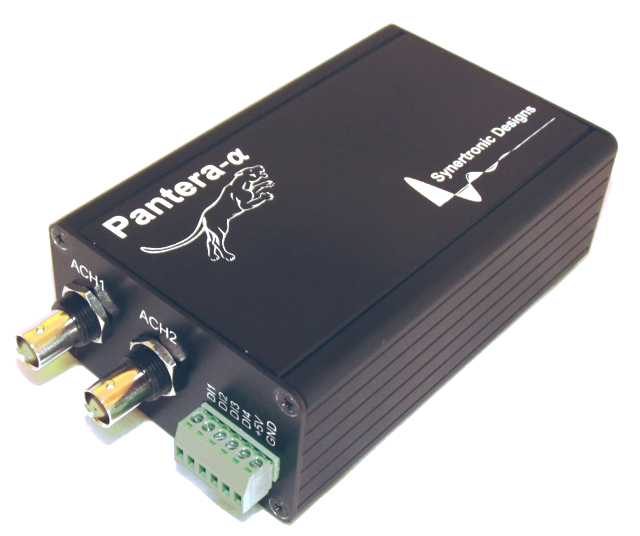

Pantera-ɑ
Pantera-ɑ provides several data acquisition functions with 6 inputs and 4 digital outputs.
Together with the Pantera graphical user interface, the device can be configured in a matter of minutes for
different applications via an USB interface.
Pantera-ɑ was optimised for optical measurements. The device features improved low-voltage measurement performance,
with a minimum resolution of 50 uV. Extension modules can be added to perform log current measurements with a dynamic range of
more than 6 orders of magnitude. The device is ideal for applications using photomultiplier tubes and photo diodes.
Features
- 2x Analogue inputs
- 1x Signal generator
- 4x Configurable input ports (event counters, quadrature detectors, etc.)
- 4x Digital outputs (general purpose or PWM)
- 2x 5V auxiliary supply
- 2x Extension modules for current measurements (100 pA to 10 mA)
- Isolated USB interface
- Easy to use graphical user interface
Applications
- Measurement stations
- General data acquisition/logging
- Photonics
